property - architectural standards

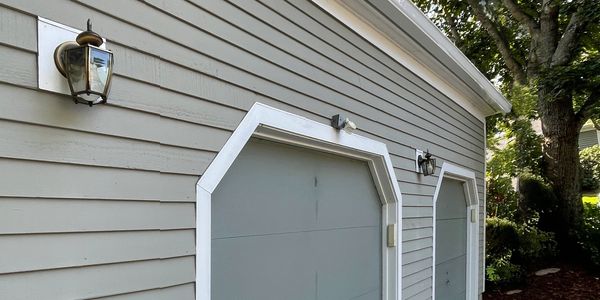

Light fixtures must be the currently approved model, color, and style for Ledgewood Hills (see photo) and are available for purchase from Property Management. Installation must be completed by a licensed electrical contractor.

Mounting Requirements

• Mount approximately 84 inches above ground level
• Place centered between two garage door openings if mounted on a garage
• Mount onto a backer board and not directly onto the gray siding clapboards
• No external junction boxes are permitted
• No external wiring is permitted. All wiring to the light fixture must be internal.

Backer Board Requirements

• Backer Board size: approximately 7 inches wide X 8 1/2 inches high
• Mount directly onto the sheathing, not over the gray siding clapboards
• Material: A white synthetic is preferred (AZEK or similar), or wood, painted white
• Installation: Ensure that the top of the board has a metal drip edge to prevent water from getting behind the backer board and rotting the sheathing

Mounting Requirements for Separate Units

• Mount to the upper trim board directly below the soffit overhang, if available
• The fixture should be flush mounted
• The color of the fixture must be white to match the building trim color
• No external junction boxes are permitted
• No external wiring is permitted. All wiring to the motion sensor must be internal
